[Junk-Tier Big Models #5] Qwen3.8-27B on a 2018 22GB card: 30 tok/s, and it one-shot a 3D scene

Old hardware gets demoted quietly. A card that was a flagship in 2018 becomes the card you run batch jobs on, then the card you keep meaning to sell. Mine is a modded RTX 2080 Ti with 22GB on it, and for most of this year its job has been making thumbnails.

Then Qwen3.8-27B fit on it. The full 27B, at a quantization that holds up, with 128K of context and about 30 tokens per second.

The first thing I asked it to do is the reason this article exists.

One sentence, 430 seconds, a voxel pagoda that runs

👉 Open it and have a play — drag to orbit, scroll to zoom.

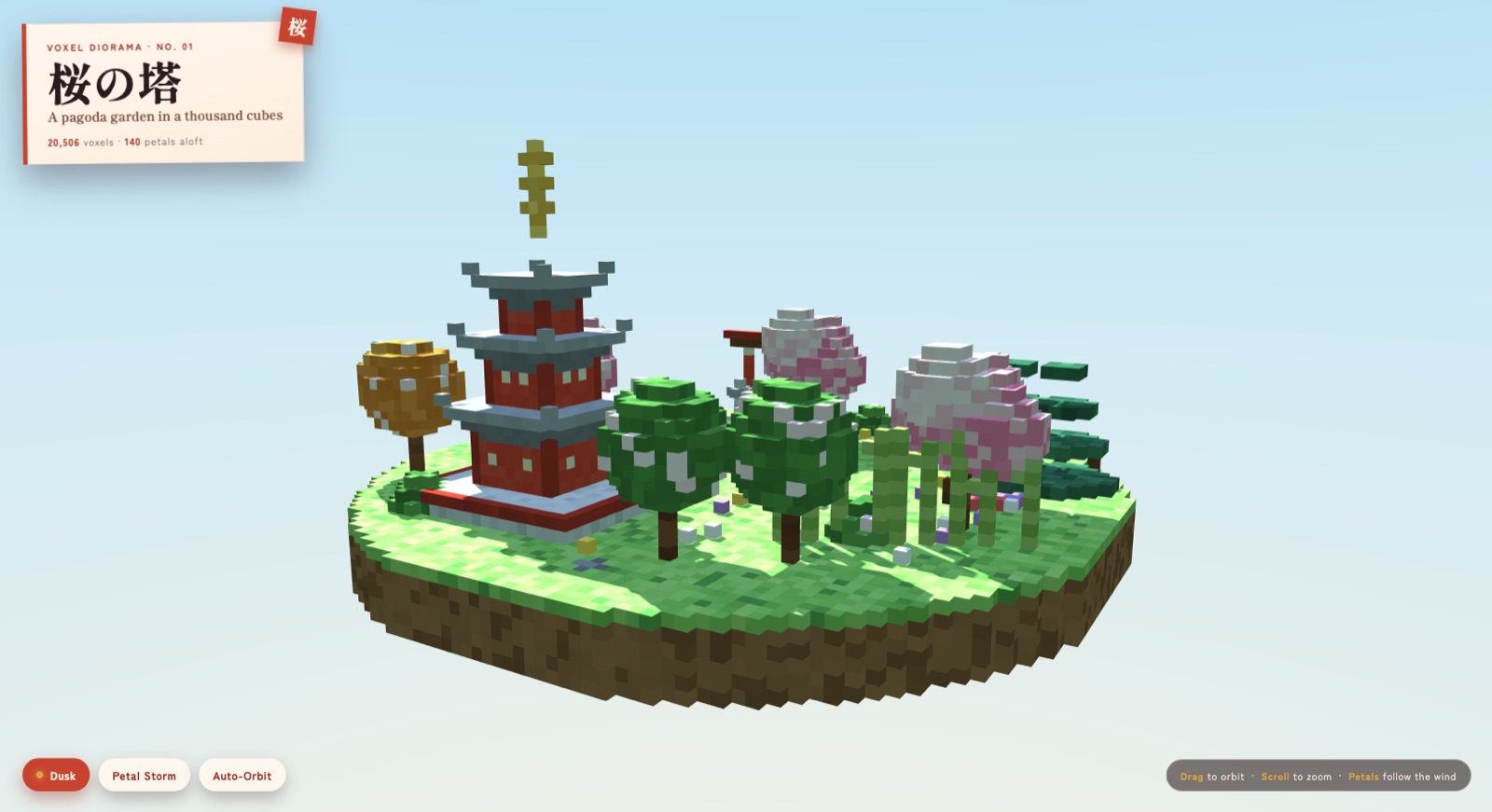

That is a floating island: three-tier red pagoda, grey tiled eaves, a spire on top, a torii gate, cherry trees. 20,506 blocks. It came back as one HTML file, generated in a single shot, and I did not edit a line of it.

The prompt was 55 words and named no library:

Design and create a very creative, elaborate, and detailed voxel art scene of a pagoda in a beautiful garden with trees, including some cherry blossoms. Make the scene impressive and varied and use colorful voxels. Use whatever libraries to get this done but make sure I can paste it all into a single HTML file.

It chose Three.js itself. It decided to make the island float. The day/night toggle and the petal-storm button were not requested. 430 seconds, 13,513 tokens.

What you need

• A 22GB or larger GPU. Mine is a modded RTX 2080 Ti 22G — Turing, compute capability sm_75, 22,528 MiB. A 24GB card gives you more headroom.
• A CUDA build of llama.cpp. I used b10064. No rebuild is needed for this model — the stock binary just runs it. ⚠️ One gotcha worth ten minutes of your life: the metadata keys inside this GGUF are prefixed qwen35., not qwen38, so grepping the header for qwen38 turns up nothing.
• 17 GB of disk.

Step one: get the weights

Take the UD-Q4_K_XL build from unsloth's GGUF repo. It is a dynamic quant, meaning the precision is not uniform across the model — layers that hurt quality when squeezed keep more bits, the rest get fewer. At the same file size it beats a flat Q4_K.

huggingface-cli download unsloth/Qwen3.8-27B-GGUF \
  Qwen3.8-27B-UD-Q4_K_XL.gguf \
  --local-dir ~/models/qwen38-27b-ud

You get 16.7 GiB (17,923,394,624 bytes). The same repo also has mmproj-F16.gguf at 884 MiB — that is the vision projector, which you only need if you want to feed it images. Skip it for text.

Step two: start the server

CUDA_VISIBLE_DEVICES=0 \
llama-server -m ~/models/qwen38-27b-ud/Qwen3.8-27B-UD-Q4_K_XL.gguf \
  --alias qwen38-27b-ud --host 0.0.0.0 --port 8082 \
  -ngl 99 -c 131072 -ctk q4_0 -ctv q4_0 \
  --parallel 1 --jinja -fa on --metrics \
  --spec-type draft-mtp --spec-draft-n-max 2 \
  --chat-template-kwargs '{"enable_thinking":false}' \
  --temp 0.7 --top-p 0.80 --top-k 20 --min-p 0.0 \
  --presence-penalty 1.5 --repeat-penalty 1.0

Loaded, VRAM sits at 20,788 / 22,528 MiB. That leaves 1.7 GB spare.

Step three: verify what is actually loaded

curl -s http://127.0.0.1:8082/props | python3 -c \
  "import json,sys; d=json.load(sys.stdin); \
   print(d['model_path'].split('/')[-1], d['default_generation_settings']['n_ctx'])"

You want the filename you downloaded and 131072.

⚠️ Trust the file -m points at, never the service description string. My systemd unit description still names a model from three months ago, while the -m path underneath it has been swapped twice since. When someone asks what a machine is running, the description is the least trustworthy field on it.

What each flag does

flag	why
-ngl 99	all layers onto the card. The whole 27B fits, so there is none of the arithmetic about how many layers to offload that MoE models force on you
-c 131072	128K context. 192K also fits, but 128K is plenty for normal use
-ctk q4_0 -ctv q4_0	store the KV cache — the running memory of the conversation — at 4-bit. A 128K KV cache does not fit uncompressed
-fa on	Flash Attention. Turing gets it too
--spec-type draft-mtp / --spec-draft-n-max 2	the model ships its own MTP head, a small extra layer that guesses the next couple of tokens so the big model can verify them in one pass instead of generating them one at a time. n=2 is the measured sweet spot — n=3 came out slower
--parallel 1	one request at a time. The card is already saturated, so concurrency just makes everyone queue
--temp 0.7 --top-p 0.80 --presence-penalty 1.5	the official non-thinking sampling values, copied as-is
--metrics	exposes /metrics, which is where the tok/s numbers below come from

30-31 tok/s, with less than 1 tok/s of spread

Same prompt, three runs:

run	seconds	completion tokens	tok/s
1	430.5	13,513	31.4
2	382.8	11,630	30.4
3	421.6	13,156	31.2

The consistency matters more to me than the number. On this card, almost all the variance I measure comes from the prompt, not from the machine.

The most important parameter is not in the launch command

The command above carries --chat-template-kwargs '{"enable_thinking":false}', so thinking is off by default. That default exists for short agent loops: a 150-word task pulled off a task board cannot afford five minutes of deliberation before it starts.

Leave that default in place for a big job, though, and it cannot one-shot 20,000+ characters of working code. It will still write, still write at length, and then quietly come apart somewhere — a variable name that stops matching, a loop condition that turns to garbage, or a scene that builds correctly with the camera parked where none of it is visible.

The fix is to turn thinking back on per request, with a ceiling:

curl -s http://127.0.0.1:8082/v1/chat/completions \
  -H 'Content-Type: application/json' \
  -d '{
    "model": "qwen38-27b-ud",
    "messages": [{"role": "user", "content": "…"}],
    "max_tokens": 40960,
    "chat_template_kwargs": {"enable_thinking": true},
    "thinking_budget_tokens": 2048
  }'

thinking_budget_tokens hard-stops the reasoning at 2048 tokens and lets the answer finish. Without the ceiling it will spend the whole budget reasoning and hand you an empty answer. One run burned past 30,000 tokens and came back with finish_reason: length and not a word of content. The pagoda used roughly 2,000 tokens of reasoning and 13,513 of answer.

It worked once in three runs

Same config, same prompt, three tries today: one scene that runs, two that do not.

The two failures both produced code that loads and throws no syntax error, and then sits on its own loading screen forever, because one line inside the animation loop throws on every frame. So one-shotting a working 3D scene at this size is a dice roll, not a capability you can schedule around. What you see above is what it can do, not what it does every time. In practice: run it a few times and pick one, or treat the output as a draft and walk the last mile yourself.

Which is also why acceptance has to mean opening a browser. Both failures passed every static check I threw at them, node --check included. The code is perfectly legal JavaScript. The only way to find out it does not move is to run it.

---
